Description

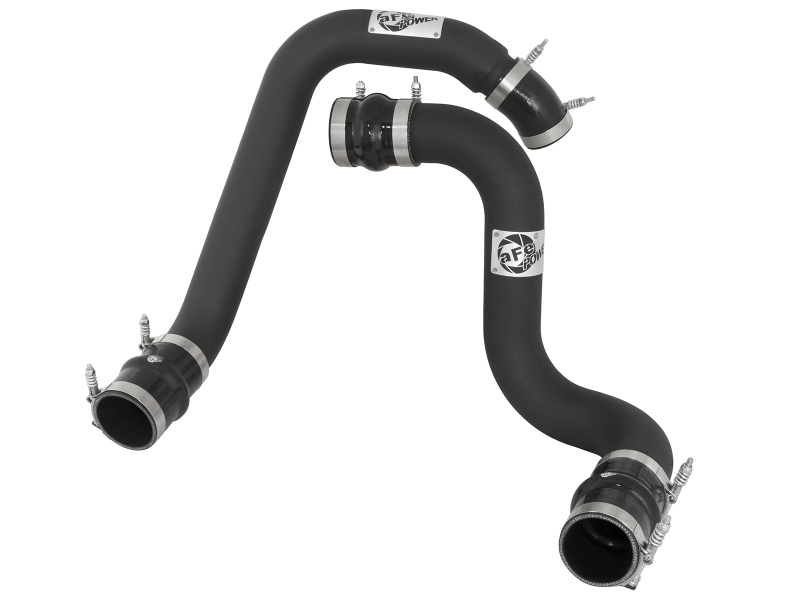

BladeRunner 3 IN Aluminum Hot and Cold Charge Pipe Kit Black Ford Diesel Trucks 03-07 V8-6.0L (td)
OEM & Performance Auto Parts in Canada-Wide
Select a vehicle to find exact fit parts
aFe Bladerunner 3in Intercooler Hot and Cold Side Tubes for 03-07 Ford Diesel Trucks V8-6.0L (td)
BladeRunner 3 IN Aluminum Hot and Cold Charge Pipe Kit Black Ford Diesel Trucks 03-07 V8-6.0L (td)
Specification
| Weight | 9.7 kg |
|---|---|
| Dimensions | 31.7 × 14.2 × 11.2 cm |
| air_freight_prohibited | false |
| not_carb_approved | true |
| carb_acknowledgement_required | true |
| ltl_freight_required | false |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| regular_stock | t |
| units_per_sku | 1 |
| upc | 802959465011 |
| brand | aFe |
| part_number | 46-20104-B |
