Aeromotive Fuel Log – Holley 4150/4500 Series

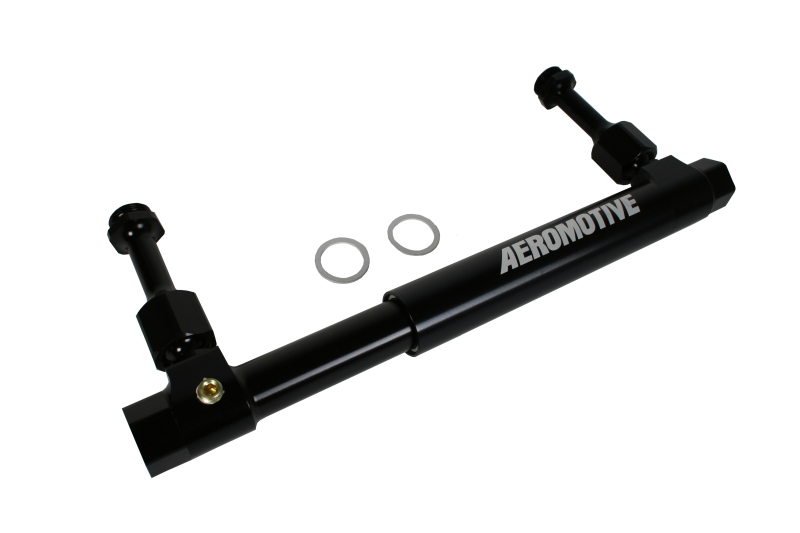

A2000 Bypass Fuel Log Kit (P/N 17250). Fits Demon style carburetors. Includes 14202 Dual Action Adjustable Fuel Log, 13212 A2000 Bypass Regulator and 15632 Fuel Pressure Gauge. For Demon Style Float Bowls (9/16 x 24 Thread). The new Aeromotive Fuel Log incorporates features never before available. Each carburetor inlet features a ball and socket assembly that?swivels +/-20 degrees, allowing additional clearance for throttle stops, nitrous plates and other accessories; then locks in place at the?desired position. The telescoping log will fit 4150 or 4500 Dominator (P/N 14201) and Demon (P/N 14202) carburetors. The ORB-10 inlet?and outlet ports will feed the hungriest big blocks, and adapt easily to Aeromotive P/N 13212 (A2000 Bypass ? gasoline) or P/N 13214?(Double Adjustable Bypass ? alcohol) fuel pressure regulators. Carburetor inlets swivel + or ? 2 0? in all directions. Telescoping center line 7 .700? to 13.450?. ORB-10 inlet and outlet ports. (2) 1/8? NPT ports for gauges or pressure transducers. 1.056 / .806? ID bore. Type II bright dip black anodized finish.
14202 / 13212 Combo Kit For Demon Style Carb.
dual action adjustable fuel log kit; includes P/N 14201 fuel log, P/N 13212 A2000 bypass 2-port regulator.

Billet, double adjustable, carburetor fuel logs for superior fitment. The advantage of a company that understands engineering, design, and manufacturing, is peace of mind. When you buy a fuel log from Aeromotive, you can be assured they will fit and deliver as promised. Threaded with 3/4 16 ORB-08 (o-ring boss) for proper sealing on carburetors like the Holley Ultra-HP and those with similar float bowls. Carburetor inlets swivel + or 20 degrees in all directions for optimum clearance from valve cover and intake runners. Telescoping center line is 7.700 to 13.450 adapts to standard and high capacity float bowls. ORB-10 inlet and outlet ports can be adapted from AN-12 to AN-06 with available Aeromotive ORB port fittings. Two 1/8 NPT ports for gauges and/or pressure tra nsducers. 1.056/.806 ID bore for high flow capacity. Type II bright-dip black anodized finish for durability and great looks.
Fuel Log, Holley Ultra HP Series 3/4-16 Thread.
dual action adjustable fuel log; Holley ultra HP style float bowls; swivels +/- 20 degrees, allowing more clearance for throttle stops and other accessories
