Aeromotive 14202 / 13212 Combo Kit For Demon Style Carb

Billet, double adjustable, carburetor fuel logs for superior fitment. The advantage of a company that understands engineering, design, and manufacturing, is peace of mind. When you buy a fuel log from Aeromotive, you can be assured they will fit and deliver as promised. Threaded with 7/8? ? 20 with flat gasket for proper sealing on carburetors like the standard Holley and those with similar float bowls. Carburetor inlets swivel + or ? 20 degrees in all directions for optimum clearance from valve cover and intake runners. Telescoping center line is 7.700? to 13.450? adapts to standard and high capacity float bowls. ORB-10 inlet and outlet ports can be adapted from AN-12 to AN-06 with available Aeromotive ORB port fittings. Two 1/8? NPT ports for gauges and/or pressure transducers. 1.056/.806? ID bore for high flow capacity. Type II bright-dip black anodized finish for durability and great looks.
Fuel Log, 4150/4500 Series Old Holley 7/8″ x 20.
dual action adjustable fuel log; 4150/4500 Holley style float bowls; swivels +/- 20 degrees, allowing more clearance for throttle stops and other accessories

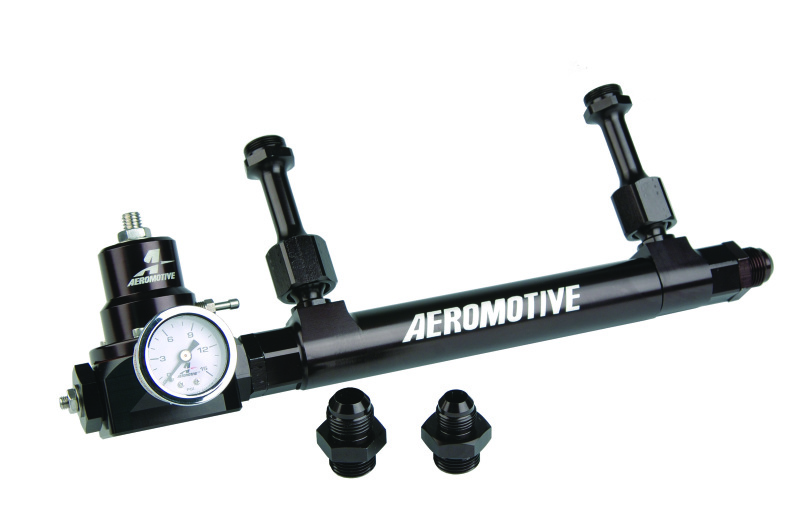

Double Adjustable Bypass Fuel Log Kit (P/N 17251). Fits Demon style carburetors. Includes 14202 Dual Action Adjustable Fuel Log, 13214 Double Adjustable Regulator and 15632 Fuel Pressure Gauge. For Demon Style Float Bowls (9/16 x 24 Thread). The new Aeromotive Fuel Log incorporates features never before available. Each carburetor inlet features a ball and socket assembly that?swivels +/-20 degrees, allowing additional clearance for throttle stops, nitrous plates and other accessories; then locks in place at the?desired position. The telescoping log will fit 4150 or 4500 Dominator (P/N 14201) and Demon (P/N 14202) carburetors. The ORB-10 inlet?and outlet ports will feed the hungriest big blocks, and adapt easily to Aeromotive P/N 13212 (A2000 Bypass ? gasoline) or P/N 13214?(Double Adjustable Bypass ? alcohol) fuel pressure regulators. Carburetor inlets swivel + or ? 2 0? in all directions. Telescoping center line 7 .700? to 13.450?. ORB-10 inlet and outlet ports. (2) 1/8? NPT ports for gauges or pressure transducers. 1.056 / .806? ID bore. Type II bright dip black anodized finish.
14202 / 13214 Combo Kit For Demon Style Carb.
dual action adjustable fuel log kit; includes P/N 14201 fuel log, P/N 13214 double adjsutable bypass regulator.
