Edelbrock 11-14 Ford Coyote DBW VCC Pro-Flo 4+ EFI Fuel Injection Kit

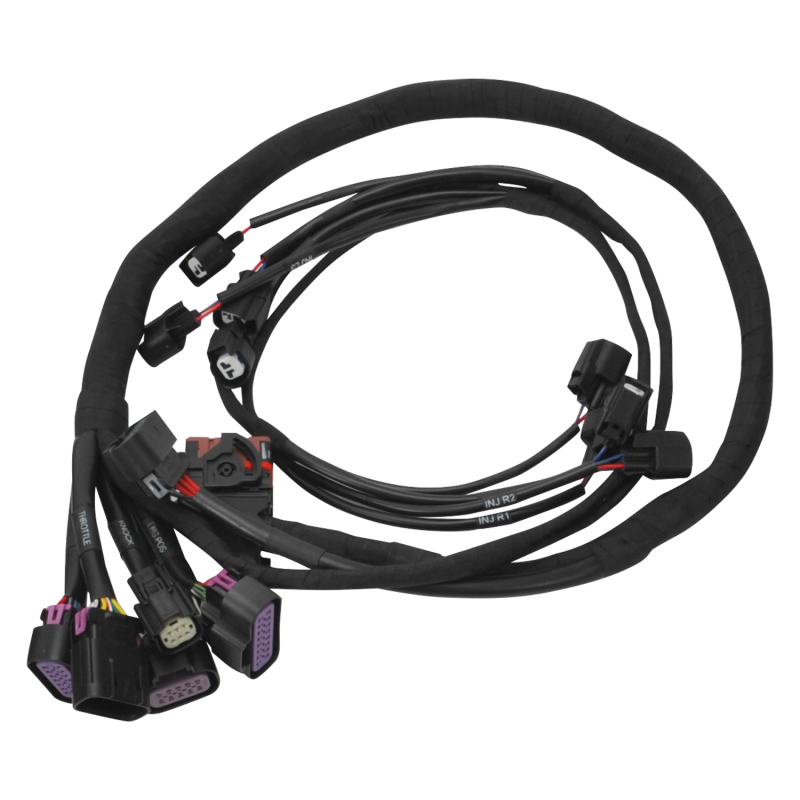

The Edelbrock part #35960 Pro-Flo 4 EFI System for Ford FE 390-428 C.I. engines is equipped with the latest in technology and features. The EFI system comes complete with a traditional 4150-Style satin finish single plane intake manifold and 35 Lb/Hr injectors capable of 550 HP with 58 p.s.i. fuel pressure. Also included is a plug and play single connection distributor designed to work specifically with Pro-Flo 4 and a made in the USA fully terminated high-quality harness with clearly labeled connections to ensure a hassle-free installation. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and measures half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We’ve added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU’s self-learning capability to continually adjust the calibration to get maximum performance. E-Tuner 4 features a simple and easy to use setup wizard to help you get started. Best of all, the E-Tuner 4 app is free and can be downloaded from the Google Play Store, allowing you to use your personal Android based smart phone or tablet. If you don’t have a compatible device, then we also offer kits that include a 7″ Android tablet with the E-Tuner 4 app pre-installed.Multiple dash displays are included to allow you to monitor engine vitals with an Android smart phone or tablet.Pro-Flo 4 does not require laptop tuning.
Edelbrock Pro-Flo 4 EFI System for Ford FE 390-428 CID engines. The EFI system comes with a 4150-Style satin finish single plane intake manifold and 35 Lb/Hr injectors capable of 550 HP with 58 p.s.i. fuel pressure.
Ford:FE:332 (5.4L)/352 (5.8L)/360 (5.9L)/390 (6.4L)/406 (6.6L)/410 (6.7L)/427 (7.0L)/428 (7.0L)

• New ECU Preloaded w/80 Dyno-Tuned Calibrations

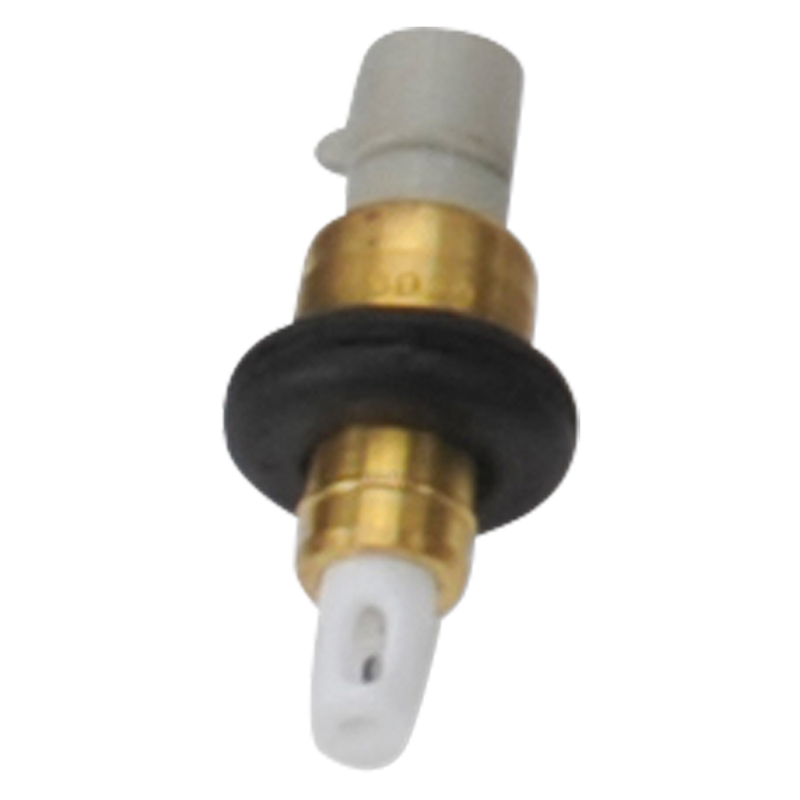

MAP, O2 and IAT sensors. The compact Pro-Flo 4+ ECU provides mounting versatility with a weather-resistant housing and features a unique self-learning capability that adjusts the fuel map as you drive, providing optimum performance with no need for laptop tuning or costly dyno sessions. Setup is quick and easy thanks to Edelbrock’s E-Tuner 4 software for Android tablets and smartphones. Pro-Flo 4+ for the 2015-2017 Coyote uses a speed-density fueling strategy with an included MAP and IAT sensor. A non-adjustable Alternator Control is set to regulate at 14.5 volts. The Coyote’s factory MAF sensor, air inlet piping and air box are eliminated, allowing unlimited configuration of your air intake design. Pro-Flo 4+ #36160 works with 80mm drive-by-wire throttle bodies as well as the 87mm GT350 throttle body. Minimal tuning adjustments are required when the provided base calibration is used, giving you great performance right out of the box. The Pro-Flo 4+ EFI Engine Management System is covered by a 2-year warranty and is backed by the industry’s most extensive technical support team.
Edelbrock Pro-Flo 4+ kit #36160 is an EFI engine management system that greatly simplifies the process of installing a 2015-2017 Ford Coyote EFI engine into a non-EFI muscle car, truck or hot rod.

• Works with stock-size Ford drive-by-wire throttle body or 87mm GT350 throttle body
• Simple plug-and-play installation, no laptop tuning required
• Works with most intake manifold configurations
• Improved drivability and throttle response
