Aeromotive Phantom 340 Fuel System – Return Style w/Y-Block

Description

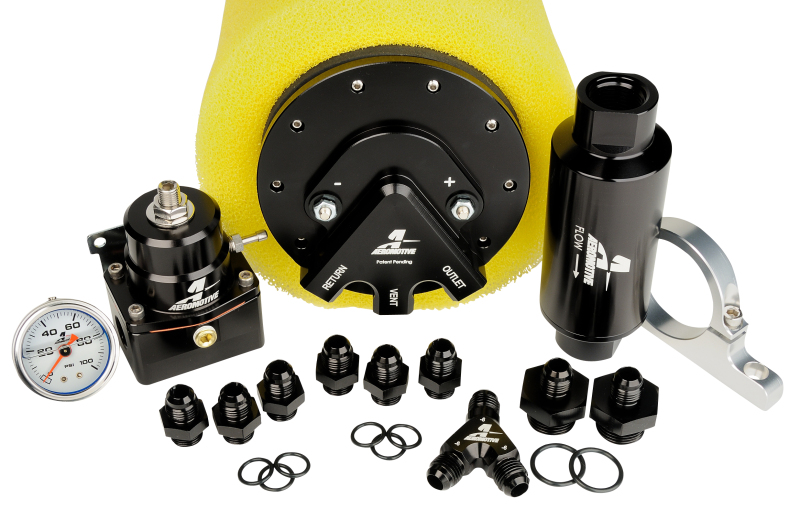

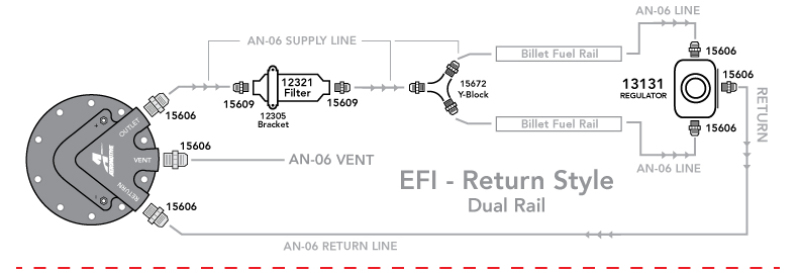

These new Phantom EFI Fuel Systems include all main fuel system components required to create a proper return-style EFI fuel system for engines with dual billet fuel rails, including the desired Phantom Baffled Fuel Pump Kit with a 340 LPH fuel pump.?Each system ships with the a custom black EFI bypass fuel pressure regulator, high-flow billet fuel filter, filter mounting bracket, hi-flow Y-block, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge. Ideal for naturally aspirated and blown, EFI engines producing from 300 ? 700 plus flywheel Horse Power, on the street or at the track.?AN-06 Style fuel hose and hose-ends are required for the installation of a fuel supply and return line, sold separately and not included. This kit contains the following parts:?1ea p/n 18688 Phantom 340, 1ea p/n 12321 10-micron Filter Assembly, 1ea p/n 12305 Filter Bracket, 1ea p/n 13131 Fuel Pressure Regulator, 1ea p/n 16307 Fuel Pump Wiring Kit, 6 ea p/n 15606 AN-06 ORB to AN-06 flare, 2 ea p/n 15609 AN-10 ORB to AN-06 flare, 1ea p/n 15633 0-100 psi Gauge, 1ea p/n 15672 AN-06Y-Block.
System, Fuel, Phantom 340, Return Style(Phantom 340, Filter, Filter Bracket, Regulator, Wiring Kit, Fittings, Y-Block, Gauge).
Fuel System Phantom Kit; Includes all main fuel system components required, including 340lph pump. Creates a proper RETURN-STYLE EFI fuel system for engines with dual billet fuel rails. Does not include fuel line or hose ends.
