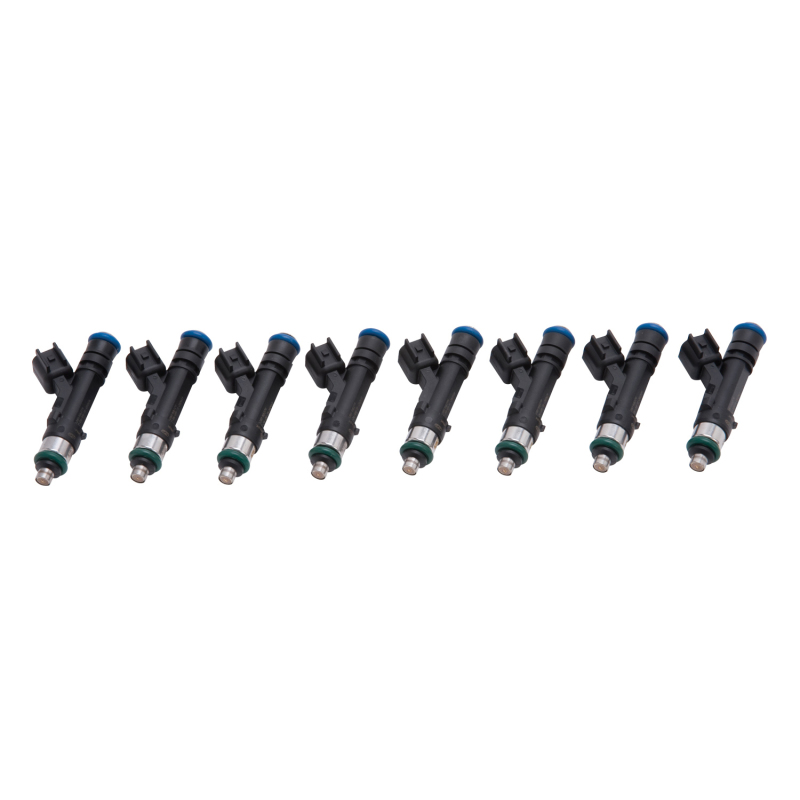

The Edelbrock #15901 injectors are Bosch style, standard long length (60mm O-ring to O-ring dimension), and are high impedance 50 lb/hr at 43.5 psi (300 Kpa). ?They have a dual spray pattern and use USCAR style connectors. ?These injectors can handle 100 psi without shutting off. These are included in our #1584, #1588, and #15986 E-Force supercharger systems.
50 Lb/Hr Fuel Injector for Edelbrock #1588, #1584 and #15986 E-Force S/C Systems Set of 8
The Edelbrock #15901 injectors are Bosch style, standard long length (60mm O-ring to O-ring dimension), and are high impedance 50 lb/hr at 43.5 psi (300 Kpa). ?They have a dual spray pattern and use USCAR style connectors. ?These injectors can handle 100 psi without shutting off. These are included in our #1584, #1588, and #15986 E-Force supercharger systems.
50 Lb/Hr Fuel Injector for Edelbrock #1588, #1584 and #15986 E-Force S/C Systems Set of 8
| Weight | 1.04 kg |
|---|---|
| Dimensions | 6.3 × 5.8 × 2 cm |
| air_freight_prohibited | false |
| not_carb_approved | true |
| carb_acknowledgement_required | true |
| ltl_freight_required | false |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| regular_stock | false |
| units_per_sku | 1 |
| upc | 85347159017 |
| brand | Edelbrock |
| part_number | 15901 |
The Edelbrock part #35760 Pro-Flo 4 EFI System for 1986 & Earlier Small-Block Chevy engines is equipped with the latest technology and features. The EFI system comes complete with a traditional 4150-Style satin finish single plane intake manifold and 29 Lb/Hr injectors capable of 450 HP with 58 p.s.i. fuel pressure. Also included is a plug and play single connection distributor designed to work specifically with Pro-Flo 4 and a made in the USA fully terminated high-quality harness with clearly labeled connections to ensure a hassle-free installation. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and measures half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We’ve added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU’s self-learning capability to continually adjust the calibration to get maximum performance. E-Tuner 4 features a simple and easy to use setup wizard to help you get started. Best of all, the E-Tuner 4 app is free and can be downloaded from the Google Play Store, allowing you to use your personal Android based smart phone or tablet. If you don’t have a compatible device, then we also offer kits that include a 7″ Android tablet with the E-Tuner 4 app pre-installed. Multiple dash displays are included to allow you to monitor engine vitals from your Android smart phone or tablet.Pro-Flo 4 does not require laptop tuning.
Edelbrock Pro-Flo 4 EFI System for 1986 & Earlier Small-Block Chevy engines. The EFI System comes with a 4150-Style satin finish single plane intake manifold & 29 Lb/Hr injectors capable of 450 HP with 58 p.s.i. fuel pressure.
Chevrolet:Small-Block Gen I:283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
Injector Dynamics 2600-XDS Injectors – 99-07 Hayabusa – 11mm Top – -204 Lower Cushion (Set of 4)
Injector Dynamics ID1300-XDS Fuel Injectors Polaris RZR 14mm Grey Adapter Top (Set of 2)
Edelbrock part #3522 is a set of (8), short body Siemens Deka High Impedance (12.5 ohms) fuel injector with a flow rate of 80 lb/hr (830cc) @ 43.5psi.
Edelbrock set of (8), short body Siemens Deka High Impedance (12.5 ohms) fuel injector, 80 Lb/hr
