Description
The Gen 2 B58 version of the Type B high mount, for large-frame single-turbo builds. Adds a T4 Twin Scroll option the Gen 1 does not offer, and requires two coolant port blanks on installation.
Key Features:
- Gen 2 specific: Built for the Gen 2 B58 as its builds move beyond the smaller, response-focused turbo combinations.
- Eight flange options including T4 Twin Scroll: The twin scroll option is unique to this manifold within the B58 range and is priced well above the others.
- High-mount packaging: Space for larger turbocharger packages plus improved access to the turbo and hardware, which matters as exhaust routing and serviceability get harder.
- Turbosmart StraightGate50 configuration: Electronic wastegate control for modern high-output B58 combinations.
- Two coolant port blanks required: A Gen 2 installation requirement, selectable with the manifold.

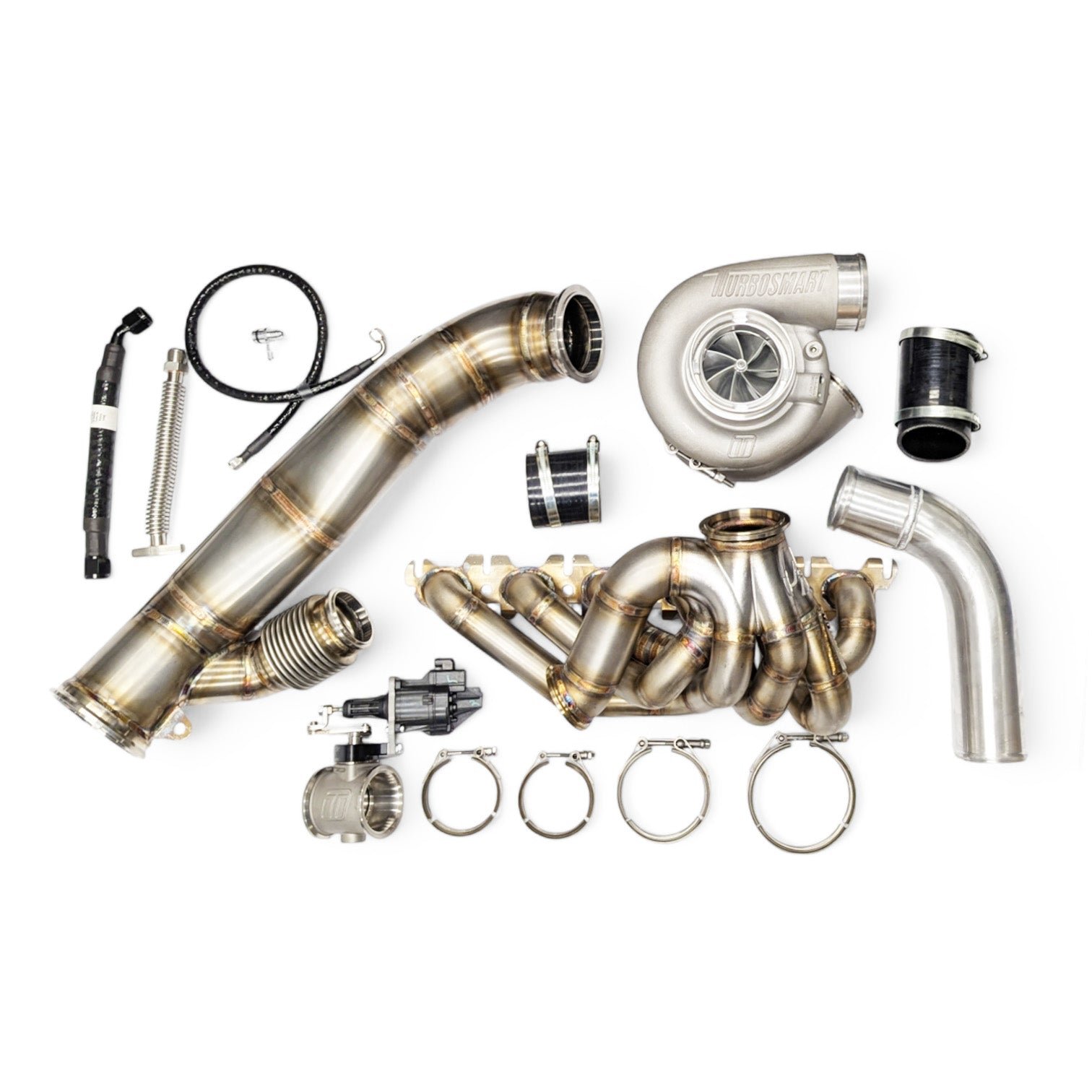

- Supporting system available: Large-frame turbocharger, downpipe, StraightGate50, turbo oil line kit and a Type B boost pipe to join Osprey/FTP-style upper charge pipes.
Fitment:
- BMW B58 Gen 2 engines
- BMW F20, F21, F22, F23, F30, F31, F32, F33, F34, F36
- BMW G01, G02, G07, G11, G12, G20, G21, G22, G23, G26, G42, G45, G70
- Toyota A90 Supra
Does not fit BMW 5 Series applications. Custom downpipe fabrication may be required depending on the turbo selected. Built to order, typical build time 2-4 weeks.
