CSF Audi B8 S4 & S5 High Performance All-Aluminum Radiator

Description

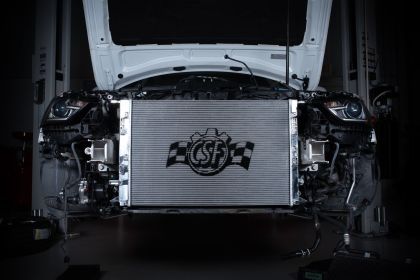

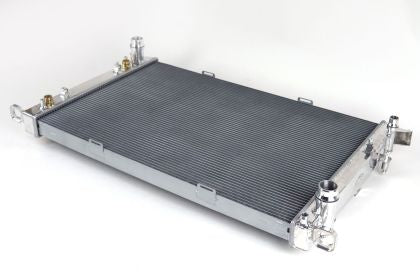

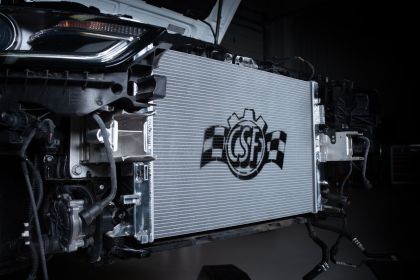

CSF Audi B8 S4 & S5 High Performance All-Aluminum Radiator

As CSF continues to expand its VAG cooling performance catalog with more unique and world’s first options, next on the list is the ever-popular B8 Audi S4/S5 platform. Just in time for Summer, CSF is excited to announce another industry exclusive – its new High-Performance All-Aluminum Drop-in Fit Radiator upgrade (CSF #7091).

CSF’s High-Performance 2-Row Radiator is complete with precise CNC machined fittings and brackets to allow ease of installation in the complex plastic housing system. It also includes an OEM-style wire harness bracket system to secure the harness that runs across the top of the radiator.

In addition to CSF’s high-performance radiator core design, CSF has added an upgraded plate-type transmission oil cooler to the left side tank for improved transmission cooling in vehicles with automatic transmissions (comes pre-plugged for use in manual transmission vehicles).

• 2-Row 42mm High-Performance Core Featuring CSF’s B-Tube Technology
• Core Features Ultra Efficient 6.5mm Tall Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• 100% All-Aluminum TIG-Welded Construction

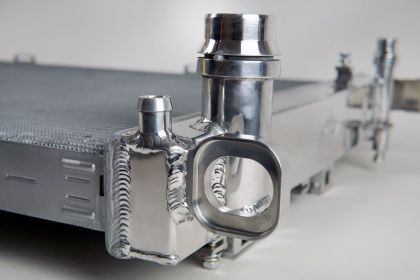

• CNC Machined Mounting Brackets and OEM Style “Quick Connect” Inlet/Outlet
• Integrated High-Performance Transmission Oil Cooler for Both Automatic and Manual Transmissions
• Integrated OEM Style Wire Harness Brackets
• True “Drop-in Fit” Requires No Modifications to Install
• Individually Leak and Pressure Tested
• 1 Hour “Mirror Finish” Hand Polish
• 2 Year Limited Warranty
• Fits:
  • 2010-16 Audi (B8) S4
  • 2009-14 Audi (B8) A4 Quattro
  • 2010-14 Audi (B8) S5
  • 2008-16 Audi (B8) A5
  • 2008-14 Audi (B8) A5 Quattro
  • 2010-13 Audi A6
  • 2016 Audi A6
  • 2012-15 Audi A6 Quattro
  • 2016 Audi A7
  • 2012-15 Audi A7 Quattro
  • 2009-17 Audi Q5
  • 2014-17 Audi SQ5
  • 2015-18 Porsche Macan S & GTS
• OEM #
  • Automatic: 8K0-121-251-AL
  • Manual: 8K0-121-251-H
