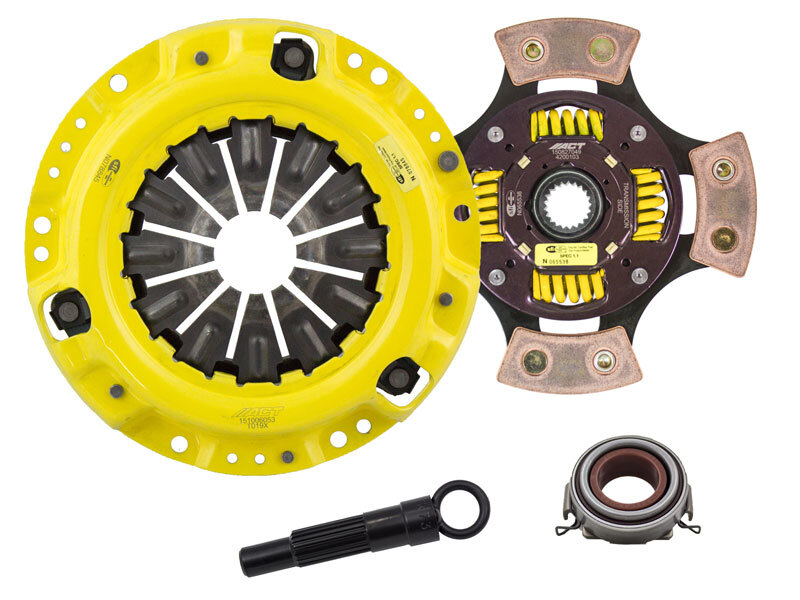

ACT 1986 Toyota Corolla XT/Race Sprung 4 Pad Clutch Kit

Description

TL2-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT’s 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.
XT/Race Sprung 4 Pad
Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle; Moderate friction life, extended by ACT’s exclusive diaphragm design; Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance; Recommended for high horsepower street or race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Fitment
1985 Chevrolet Nova
1985 Toyota MR2
1986 Chevrolet Nova
1986 Toyota Corolla
1987 Chevrolet Nova
1987 Toyota Corolla
1988 Chevrolet Nova
1988 Toyota Corolla
1989 Geo Prizm
1989 Toyota Corolla
1990 Geo Prizm
1990 Toyota Corolla
1991 Geo Prizm
1991 Toyota Corolla
1991 Toyota Tercel
1992 Toyota Paseo
1992 Toyota Tercel
1993 Toyota Paseo
1993 Toyota Tercel
1994 Toyota Paseo
1994 Toyota Tercel
1995 Toyota Paseo
1995 Toyota Tercel
1996 Toyota Paseo
1996 Toyota Tercel
1997 Toyota Paseo
1997 Toyota Tercel
1998 Toyota Paseo
1998 Toyota Tercel
